Using Advanced Data Tables

Advanced data tables are used for storing information of a complex structure, such as custom data types and arrays. For more information on data types, see Datatype Table.

  1. The first row of an advanced data table contains text in the following format:

    Data <data type> <data table name>

  2. Each cell in the second row contains an attribute name of the data type.

    For an array of objects, the [i] syntax can be used to define an array of simple datatypes, and [i]. <attributeName> to define an array of custom datatypes.

  3. The third row contains attribute display names.
  4. Each row starting from the fourth one contains values for specific data rows.

The following diagram displays a datatype table and a corresponding data table with concrete values below it.

Datatype table and a corresponding data table

Note: There can be blank cells left in data rows of the table. In this case, OpenL Tablets considers such data as non-existent for the row and does not initialize any value for it, that is, there will be a null value for attributes or even null for the array of values if all corresponding cells for them are left blank.

There might be a situation when a user needs a Data table column with unique values, while other columns contain values that are not unique. In this case, add a column with the predefined _PK_ attribute name, standing for the primary key. It is called an explicit definition of the primary key.

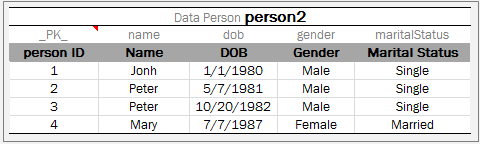

A Data table with unique _PK_ column

If the _PK_ column is not defined, the first column of the table is used as a primary key. This is called an implicit definition of the primary key.

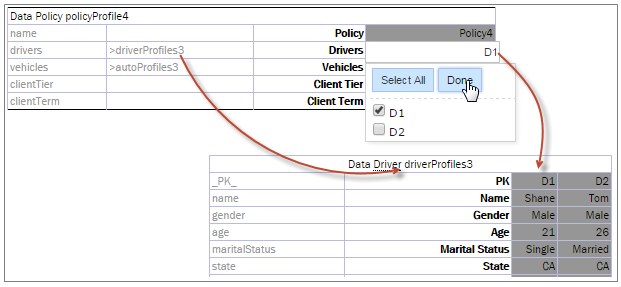

Referring from one Data table to another using a primary key

A user can call any value from a data table using the following syntax:

<datatable name>[<number of row>] Example: testcars[0]
<datatable name>["<value of PK>"] Example: testcars["BMW 35"]
