OpenL Tablets 5.9.3 is a feature release introducing condition cell references, improved array support, and WebStudio usability enhancements. Source code migrated from Subversion to Mercurial.

New Features

References to Conditions from Return Cells

Users can now reference condition values from Return column cells using the syntax $C<n><variable name>.

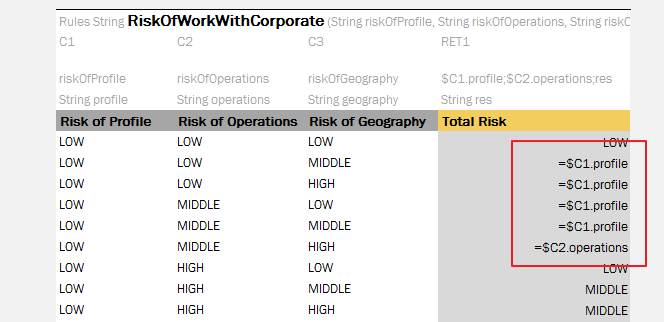

Condition References Example 1

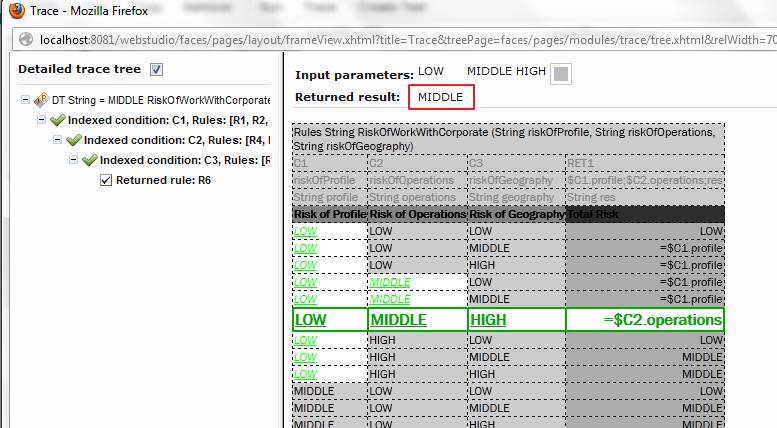

Condition References Example 2

Improvements

Core:

  • Enhanced math helper functions to handle null values in arithmetic operations (null treated as 0 for sum and 1 for multiply).
  • Transitioned from Static Wrappers to Rules Interfaces — wrappers are now deprecated.
  • Added array manipulation methods: add, addAll, remove, removeElement.
  • Enabled array and range support in SimpleRules and SimpleLookup tables.

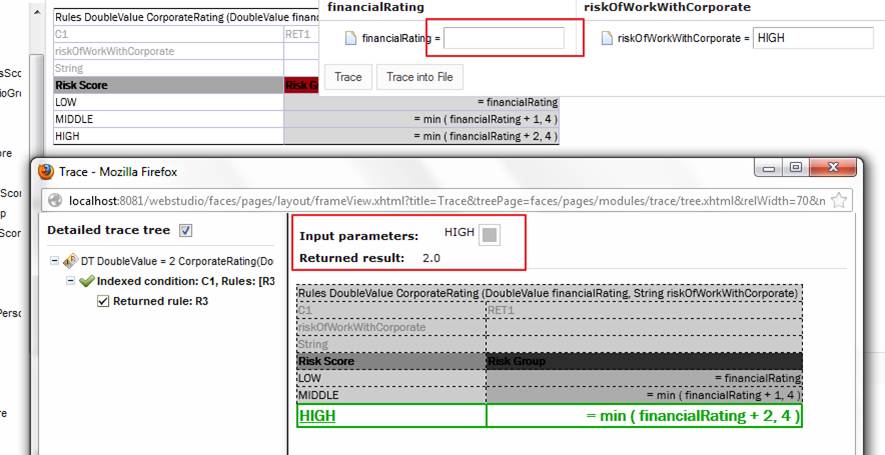

Array Support Example 1

Array Support Example 2

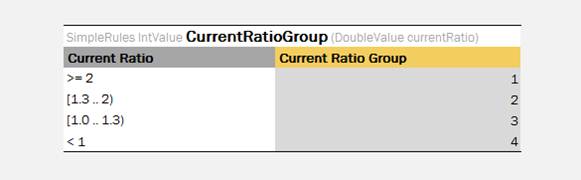

Array Support Example 3

WebStudio:

  • Added Java x64 support.
  • Wizard for creating Data tables via the UI.
  • Redesigned search functionality.
  • Added Custom Spreadsheet Type and Dispatching mode visibility in System Properties.
  • Enhanced Decision table trace with row execution highlighting.
  • Restored and redesigned recently visited tables feature.
  • Separated table properties from categories.
  • Implemented new error output engine.
  • Resolved encoding issues.

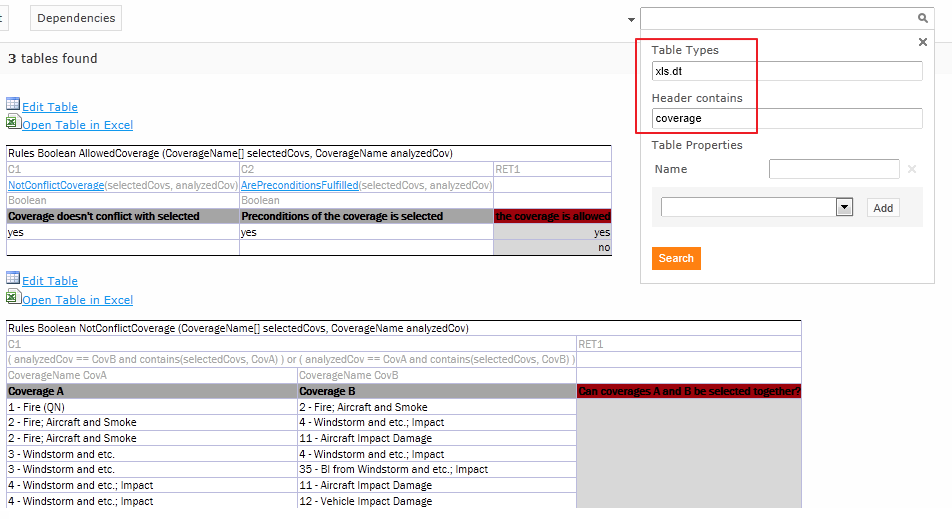

WebStudio Improvement 1

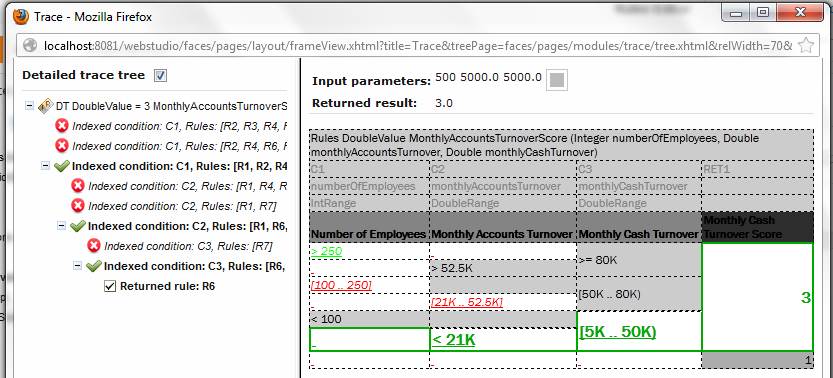

WebStudio Improvement 2

Web Services:

  • Added comprehensive request/response logging.

Infrastructure:

  • Migrated source code repository from Subversion to Mercurial.

Bug Fixes

Core:

  • Fixed: big function incompatibility with initialized arrays.
  • Fixed: Default values not applied to complex datatypes.
  • Fixed: Unable to call wrapper datatype arrays (Integer, Double) and numeric value types.
  • Fixed: contains(null, <String>) returning errors.
  • Fixed: Type casting issues from int to double.
  • Fixed: Array initialization syntax misinterpreting dimensions.
  • Fixed: Null handling in comparison operations.

WebStudio:

  • Fixed: Browser tab support.
  • Fixed: False modification alerts for Excel files.
  • Fixed: Administration page access restricted to authorized users.
  • Fixed: Project visibility following workspace uploads.
  • Fixed: Script errors in IE 9.0 for Rules Dependencies.
  • Fixed: Excel file opening with special characters (%).
  • Fixed: No validation for duplicate technical names in wizards.
  • Fixed: Test table foreign key error persistence.
  • Fixed: Excel 2007–2010 cell style rendering.
  • Fixed: Java beans visibility in datatype drop-downs.
  • Fixed: Startup performance.
  • Fixed: IE 9.0 comparison script errors.
  • Fixed: Exceptions with Infinity/NaN return values.
  • Fixed: Special character search (@, %, $, ^, #, &).
  • Fixed: Input parameter popup scrolling for large parameter sets.

Web Services:

  • Fixed: WSDL address input handling in SoapUI.
  • Fixed: ClassCast exceptions with interface methods using converters.

Library Updates

Library Version
POI 3.8
