OpenL Tablets 5.23.0 is a major release introducing new features, significant improvements, and a large number of bug fixes.

New Features

Kafka Integration in OpenL

Kafka Publisher support is added to OpenL Tablets for message handling, allowing rule results to be published to output or dead letter topics.

Customizing Output of SpreadsheetResult

A new syntax for SpreadsheetResult customization uses asterisks (*) to include and tildes (~) to exclude steps from SOAP/REST responses.

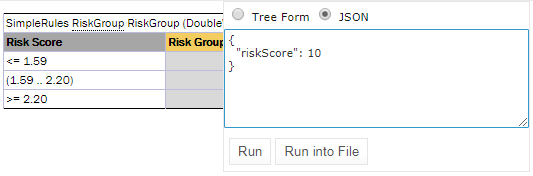

Run/Trace with JSON Input

A text area is added for the Run/Trace buttons in WebStudio, enabling users to execute rules using JSON data.

Run/Trace with JSON input

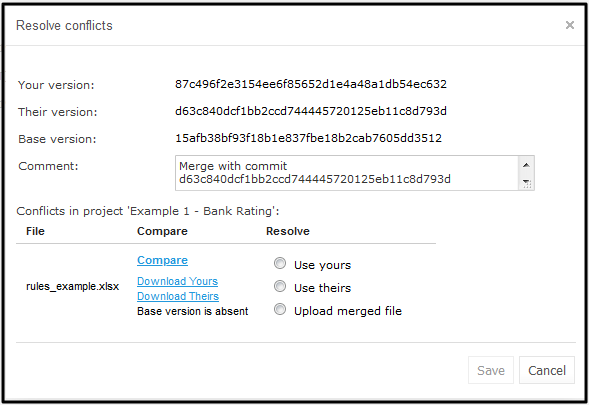

Git Conflict Resolution UI

A new UI for resolving Git conflicts provides options to use the current user’s changes, another user’s changes, or upload a merged file.

Resolve Git conflicts

Improvements

  • Possibility to use simplified references to SpreadsheetResult cells of external spreadsheets.
  • length() function added for Map objects.
  • Extracted openl-default.properties from PropertySourcesLoader.
  • Mark succeeded or failed test cases and show the number of failed results next to the test case ID.
  • Single-file configuration for WebStudio (like in Rule Services).
  • Externalize filter for login name in LDAP.
  • Show the Install Wizard only if no settings are found in ${openl.home}.
  • The ordering of changes in “Changes” is updated: the latest changes appear at the top.
  • Support for JBoss EAP 7.2.
  • Support for the TRUE condition in SmartRules.
  • Parsing of dates in Datatype tables for LocalDate, LocalDateTime, LocalTime, and ZonedDateTime.
  • Validation added for external Conditions and Actions.
  • Optimization in Condition expression calculation if a parameter does not participate in the condition.
  • Support for the Instant date type.
  • Support for the contains(range, value) syntax for the contains function.
  • Casting of input numbers in rules conditions.
  • The text of the error message in SmartRules is updated when the Collect feature requires an array as the return type.
  • Removed JCR implementation of repositories.
  • Preserving the order of properties in openl-projects.properties.
  • Improved Resolve Conflict dialog.
  • Removed old behavior for loading properties.
  • Refactoring of MultipleRuleServicePublisher to act as a manager of publishers.
  • Reduced payload for displaying the start page in Rule Services.
  • Ability to compare conflicted text files.
  • Support for valueOf(String) and parse(CharSequence) to instantiate types.
  • Ability to remove empty values from REST responses.
  • Ability to store Kafka messages to the logging system.
  • Ability to log different parts of data to different entities.
  • Ability to define several logging systems.
  • StoreLogData annotations are reworked.
  • Stable and predictable JSON response fields.
  • Improved Tracer to reduce temporary array creation.

Bug Fixes

Core:

  • Fixed: 2-Level Condition is interpreted incorrectly in Smart Rules.
  • Fixed: An incorrect user message with NullPointerException is displayed for function flatten(null).
  • Fixed: Return column is identified as Condition in case of a merged column in Smart Rules.
  • Fixed: java.lang.ClassCastException appears if a user uses $RulesId in External Condition.
  • Fixed: The “element is null” NullPointerException in Spreadsheet Table when a Datatype contains an error.
  • Fixed: java.lang.IllegalArgumentException: argument type mismatch for transform index array.
  • Fixed: The “element is null” NullPointerException for addAll() method.
  • Fixed: An error is displayed in a Smart Rules table if a condition is specified incorrectly in External Condition.
  • Fixed: Double values can be stored in a Date cell format.
  • Fixed: ClassCastException on rules running because primitives cannot be correctly cast.
  • Fixed: Condition is incorrectly matched on the Return column if simplified syntax is used in External Condition.
  • Fixed: Incorrect count of errors is displayed in the Test table if it refers to a Data table.
  • Fixed: Incorrect type of return object is identified in Smart Rules if the return column calls a rule returning SpreadsheetResult type.
  • Fixed: It is allowed to specify the same parameter in several columns in a test table.
  • Fixed: Return Column is identified as Condition in Smart Rules.
  • Fixed: Method allTrue() does not work for a spreadsheet cell range if one of the cells is empty.
  • Fixed: Method contains(A[], B) does not work if A[] is not the same type as B.
  • Fixed: NullPointerException is thrown if methods of Utils classes are used with Generics.
  • Fixed: SmartRules: Return column type is defined incorrectly if the column name and column type correspond to the return type.
  • Fixed: Spreadsheet cells that are referenced to primitives are converted to non-primitives.
  • Fixed: An error is displayed in the Test table if it refers to a Data table that contains non-unique indexes.
  • Fixed: Negative precision does not work properly in test tables.
  • Fixed: NullPointerException appears for List in index operations.
  • Fixed: Comparison operators are not symmetrical for inheritable types (Timestamp vs Date).
  • Fixed: java.lang.reflect.InvocationTargetException: null appears on comparison of NaN with double.
  • Fixed: NullPointerException is presented to the user because cast does not work properly with null.
  • Fixed: The compilation exception is not presented when referencing an element of a Set or a Collection by index.
  • Fixed: Impossible to set a value to the bean referenced to a spreadsheet cell if the cell value is null.
  • Fixed: NullPointerException is presented in the UI if a user calls a Custom Datatype element by index.
  • Fixed: No error is presented to the user if a run table references another table with several business versions without runtime context and the number of table versions is even.
  • Fixed: NullPointerException on execution of a Rules table if the RET column refers to a Condition column that contains a call to another rule.
  • Fixed: An array of custom datatype elements that are not defined are returned from a data table if they have array elements referencing another data table.
  • Fixed: An incorrect warning message is displayed in Smart Rules if input variables are matched perfectly with conditions.
  • Fixed: The error “There is no index 0 in the sequence” is presented for a Data table if the data table references another data table.
  • Fixed: No validation of the type of Map return result for Smart and Simple rules.
  • Fixed: Return Column is matched on the particular field of the output compound object but should be matched on the whole object.
  • Fixed: Incorrect matching of input data with a condition in Smart Rules if words differ by one letter.
  • Fixed: An error is displayed in Smart Rules if the return column contains a Compound result with 1 column.
  • Fixed: The error “Failed to compile decision table” is presented to the user if an External Condition matches the DT return column.
  • Fixed: NullPointerException is presented to the user if _PK_ is specified for a custom datatype field.
  • Fixed: Validation on Alias is not working when an object is created via a new Bean() constructor.
  • Fixed: A non-user-friendly message is presented to the user if an input parameter is matched on a field of a compound output parameter with a different type in SmartRules.
  • Fixed: Input parameter does not match a condition if the variable name and conditions have different letter casing in SmartRules.
  • Fixed: Horizontal conditions are interpreted as Vertical conditions if a Smart Lookup table contains errors.
  • Fixed: Fields of a complex object are not ordered in the rule execution result.
  • Fixed: One of the conditions is ignored if the technical title (C1) is merged, but columns with conditions are separate.
  • Fixed: Support for transposed Simple Rules and Smart Rules.
  • Fixed: Compilation does not find alias datatype casts in some cases.
  • Fixed: Entered elements of a two-dimensional array are interpreted as null.
  • Fixed: NullPointerException “The element is null” is presented to the user for array index operation where null is used.

WebStudio:

  • Fixed: “Run into File” feature does not work on Docker.
  • Fixed: “Run Into File” operation failure if the field of a complex object has List type.
  • Fixed: The “Something went wrong” error appears on expanding a SpreadsheetResult input item.
  • Fixed: “Run in File” feature does not work for the Map data type.
  • Fixed: Project fails to load if some cells outside a table are merged.
  • Fixed: NullPointerException appears in the log if a Spreadsheet table contains null.
  • Fixed: Deleted project is available for selection in the Name drop-down list.
  • Fixed: Time is displayed incorrectly in WebStudio if cell type is Custom m/d/yyyy h:mm.
  • Fixed: SmartLookup: Conditions do not match properly if the condition has an array of Alias Datatypes.
  • Fixed: Name field in the Deployment Repo section is populated with the user’s name after entering an email in Chrome browser.
  • Fixed: Project fails to open if a connected library is specified in the Environment table incorrectly.
  • Fixed: NullPointerException appears in the log if there is a compilation error in a spreadsheet step.
  • Fixed: No tooltip or link for a constructor of a Datatype.
  • Fixed: Security Manager allows terminating an application server via a Rule table.
  • Fixed: NullPointerException errors appear in the log if the user opens a test on the UI that references a non-existing datatype field.
  • Fixed: Comment for the Copy Project action is not displayed on the revisions tab.
  • Fixed: A date cannot be selected via the UI for Smart Rules if the max-min feature is used.
  • Fixed: “Run in File” feature does not work for the List data type.
  • Fixed: WebStudio cannot be configured under Jetty.
  • Fixed: The value is displayed in different formats in Trace: tree and Trace: returned result.
  • Fixed: JBoss: Error 500 appears on the UI after installation is completed via the installation wizard.
  • Fixed: NullPointerException appears on the Copy Project action if the database connection is incorrect.

Rule Services:

  • Fixed: Response type is missing in the Swagger schema.
  • Fixed: Project deployment failure if there are several input parameters with the same name but different capitalization.
  • Fixed: REST services use incorrect media type for simple data types.
  • Fixed: QueryParam is ignored in the REST service interface.
  • Fixed: WADL is stripped when an interface is used in beans.
  • Fixed: Out of Memory appears on starting a webservice if rules contain errors.
  • Fixed: Security Manager disables access for libs in the OpenL project.
  • Fixed: Services fail with ClassCastException when constants are used in RETURN.
  • Fixed: WebStudio overwrites system settings that affect Rule Services.
  • Fixed: Elasticsearch does not work.

Demo:

  • Fixed: WebStudio in Demo failed to log errors because of Security Manager.
  • Fixed: Security Manager disables access for libs in the OpenL project.
  • Fixed: java.security.AccessControlException appears in Demo under Java 9+.

OpenL Maven Plugin:

  • Fixed: Projects with dependencies and multi-module projects cannot be built via the OpenL Maven Plugin if a Data table from one module is referenced in another module.
  • Fixed: Simple Lookup table sometimes returns a wrong result.

Repository:

  • Fixed: Incorrect error messages when incorrect Git authentication information is specified.
  • Fixed: WebStudio in Demo cannot connect to a local Git repository using a relative path.
  • Fixed: A user is blocked because of 3 authentication failures when the user’s Git password was changed.
  • Fixed: No validation for the Path field in the repository on Create Project and Copy Project screens.
  • Fixed: WebStudio is broken by incorrect Git settings.
  • Fixed: The “Something went wrong” error appears if the URL for the Git repository and the local path are equal.
  • Fixed: An incorrect branch name is displayed for a project on the repository tab.
  • Fixed: Repository becomes empty after deleting a project from a copied branch.
  • Fixed: New branch pattern field is not allowed to be saved as empty.
  • Fixed: The master branch is displayed for local projects.
  • Fixed: The list of deployment configurations is not displayed in the UI if a non-folder structure is specified for the Design repository.
  • Fixed: No error is displayed in the UI if the user switches to a removed branch in WebStudio.
  • Fixed: New branch pattern feature does not work if the user entered a pattern containing braces with an unsupported placeholder.
  • Fixed: A local demo-project cannot be deleted if the Design repository was changed from local to Git.
  • Fixed: The Refresh button resets the project branch back to master for projects in Closed status.
  • Fixed: No validation for the Path field in the repository on the Admin tab.
  • Fixed: JGitInternalException is presented to the user when entering a folder name of an existing folder with different capitalization.
  • Fixed: Issues with Git commit messages for Deploy Configuration.
  • Fixed: Projects cannot be opened if the Design repository is broken.

Repository, WebStudio:

  • Fixed: JGit does not work with Security Manager.

Library Updates

Library Version
Spring Framework 5.2.3.RELEASE
Spring Security 5.2.1.RELEASE
CXF 3.3.5
Log4j 2.13.0
Jackson 2.10.1
JGit 5.6.0.201912101111-r
Elasticsearch 7.x
DataStax Java Driver 4.2.2
Ehcache 3.8
Commons BeanUtils 1.9.4
Commons Compress 1.19
Commons Collections 4.4
Commons Codec 1.13
Commons Configuration deleted
dom4j deleted
jettison deleted
Apache Commons Logging deleted
JCR deleted
