OpenL Tablets 5.21.0 is a feature release introducing Excel test result export, automatic platform configuration for DEMO, and floating-point division results. This release includes a breaking change to division behavior that requires regression testing of existing rules.

New Features

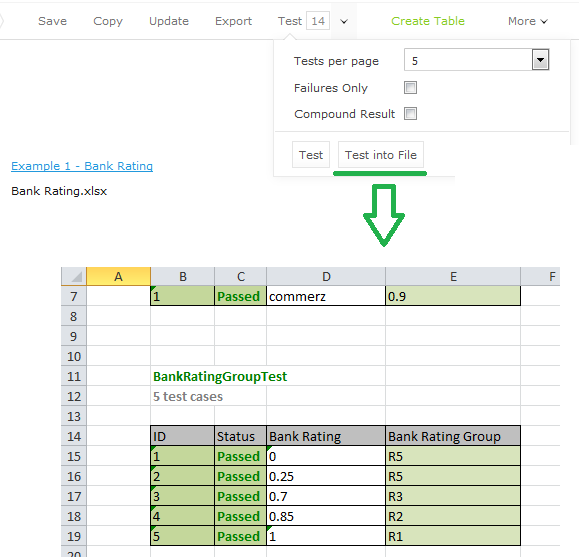

Excel Export for Test Results

Test results can now be exported to Microsoft Excel format with a convenient layout and highlighting. Passed tests are displayed in green, enabling quick regression identification, while failed test comments document expected outcomes.

Test Results in Excel Format

Automatic Java Configuration for DEMO

The OpenL DEMO package now automatically adjusts settings for platform specifics, eliminating manual environment variable configuration in most scenarios. Users need only install a current Java version and run start.cmd.

Improvements

Core:

  • Array support added for Data and Test table inputs.
  • Array element comparison capability implemented.
  • New functions: toInteger(String), toDouble(String), toString(Number).
  • New functions: isNaN(Number), isInfinite(Number).
  • New functions: length(array), isEmpty(array).
  • New tokens: not (synonym for !) and <> (synonym for !=).
  • Spreadsheet constant values default to Double or String when autoType=true.

WebStudio:

  • Added revision restoration comments in projects.
  • Redesigned “Revert changes” interface for improved usability.

Rule Service:

  • Exception type identification capability added.
  • Cassandra/Elasticsearch logging modules are now pluggable.

Maven Plugin:

  • Improved failure comparison messaging in Spreadsheet.

Bug Fixes

  • Fixed: Disappearing of “Projects” and “Deploy Configurations” from the repository tree.
  • Fixed: “The element is null” error message for array expressions.
  • Fixed: sum() function for null values.
  • Fixed: flatten() function when a varargs argument is used.
  • Fixed: An empty error message displayed for an empty required cell.
  • Fixed: Validation for Alias Datatypes between primitive and non-primitive types.
  • Fixed: Fields in format lUU cannot be found.
  • Fixed: NPE on opening a module with 2 duplicated Spreadsheets.
  • Fixed: Wrong validation in OpenL tests.
  • Fixed: Conversion from primitives to Object.
  • Fixed: NPE on loading OpenLWrapper.
  • Fixed: Merged conditions with one common vertical condition.
  • Fixed: Lookup table with merged cells in the body.
  • Fixed: NPE in DependentParametersOptimizedAlgorithm.
  • Fixed: Method overloading when number types are used.
  • Fixed: Varargs functionality for different types of input arguments.
  • Fixed: Error “The width of the table is not a multiple of the RET width”.
  • Fixed: Validation for wrong table structure.
  • Fixed: “Template” tab should be opened after the “Create Project from…” window is closed.
  • Fixed: Exception when the user opens a project with errors.
  • Fixed: Uploading ZIP files containing national symbols in file names.
  • Fixed: Number validation in the “Create new table” wizard.
  • Fixed: Date-picker input element.
  • Fixed: Navigation from an error message to the table containing the error.
  • Fixed: Table editor does not allow the user to change an incorrect value in a wrong cell.
  • Fixed: Values in Date fields display incorrectly for tables with errors.

Breaking Changes

Floating-Point Division

All division operations now return floating-point results. For example, 7/4 now equals 1.75 instead of 1. Existing rules must be regression-tested and updated accordingly.

Table Structure Validation

Stricter table structure validation has been introduced and may cause previously compiling rules to fail compilation.

Cell Comments

Cell comments now require a // prefix (two slashes).

Library Updates

Library Version
JavaCC 7.0.3
