OpenL Tablets 5.13.0 is a feature release with major usability improvements to WebStudio, web services, and the core engine.

New Features

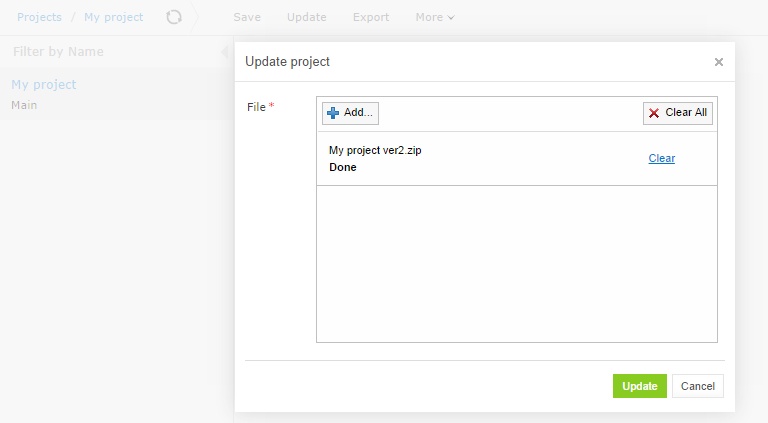

Update Project from ZIP File

Projects can be updated directly in the Editor from ZIP files containing project contents. The “Update” button appears for projects with “In Editing” status in the WebStudio top menu. A warning message is shown if the existing project structure differs from the uploaded file.

Update Project from ZIP

Dependency Manager Support for Java Code

The dependency manager now propagates all imported packages from dependency modules, allowing modules to inherit imports from their dependencies without requiring repeated import instructions.

Management Page for Web Service Application

The Web Service application now features a custom management page replacing the default CXF interface. It displays all deployed services and their methods in an improved UI, removes unnecessary technical details, and includes service startup timestamps.

Auto Detection of Spreadsheet Cell Types

Spreadsheet tables can now autodetect cell types containing OpenL formulas. Enable autodetection by setting the autoType property to true. Future releases will make this the default behavior.

Improvements

Core:

  • Performance optimization for dispatching between rule versions overloaded by business dimensions.
  • Dispatcher functionality applied to single tables with business dimension properties.
  • Enhanced RuntimeContext and RuntimeEnvironment creation API with factory implementations.
  • Lazy loading for test case input parameters in Run and Run All buttons.
  • New getValues() function retrieves all values for Alias Datatypes.
  • New flatten() function converts multidimensional arrays to single-dimensional form.
  • Default value capability (_DEFAULT_ keyword) for compound type fields in Datatypes.
  • Nested Spreadsheet testing (exceeding 2 nesting levels) now supported.

WebStudio:

  • Google Analytics integration.
  • Module name editing on the Module page.
  • Secure URLs across all pages.
  • Custom template support in the rules project creation dialog.
  • Filter to hide overloaded tables.
  • Export of the current version from the Editor and from “Closed” status projects.
  • Wildcard display and editing for modules.
  • Bookmarkable URLs in the Editor (project/module/table pages, test results, module navigation).
  • Test Settings added for the Rules table Test button.

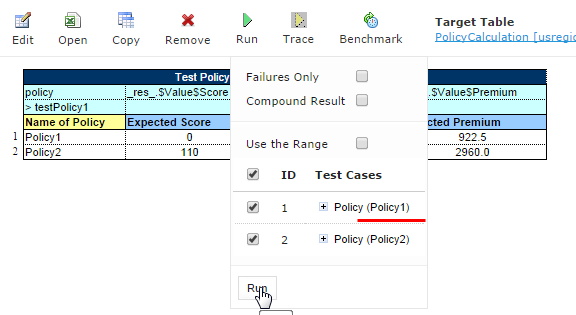

  • Test table ID display as a separate column with “Range of IDs” feature for selected test cases.
  • Password security improved: salt and stronger hashing.
  • Admin UI added for user password resets.
  • Post-login redirect to the originally requested page.

Test Table IDs

Web Services:

  • Filter to remove default methods from deployed services.
  • SpreadsheetResult type data return support.
  • Support for projects with Cyrillic symbols in names.
  • Web services settings simplified.

Demo Package:

  • Welcome Demo page added.
  • Updated for JRE compatibility.

Library Updates:

  • Spring upgraded to 4.0.5.RELEASE.
  • CXF upgraded to 3.0.0.

Bug Fixes

  • Fixed: Error after opening a deployment in the Production repository.
  • Fixed: Input parameters for overloaded tables not displaying in the Trace window.
  • Fixed: Error after exporting newly uploaded files.
  • Fixed: Trace window unable to open the correct table when rules call overloaded rules from other modules with indexed conditions.
  • Fixed: Multiple project compilations during single-module/multi-module mode switching.
  • Fixed: Limitation on Datatype table field definition (256 field maximum).
  • Fixed: Error following .jar file deletion in the Repository.
  • Fixed: Test table input parameters changing on each retest.
  • Fixed: Index condition support issues — added argument type support and improved range support.
  • Fixed: Explanation table display failure when rules originate from different modules.

Deprecations

Deprecated Item Notes
type tag in rules.xml Use alternative descriptor fields
Default <OPENL_HOME> directory Changed to \Users\<username>\.openl\

Library Updates

Library Version
Spring 4.0.5.RELEASE
CXF 3.0.0
