OpenL Tablets 5.11.0 is a feature release with significant additions to testing, table management, and WebStudio usability. Eclipse plugins are deprecated.

New Features

Table Part

Table Part functionality enables splitting a large table into smaller parts, supporting .xls files with tables exceeding 256 columns or 65,536 rows by decomposing them across multiple worksheets.

Vertical Merging of Table Parts

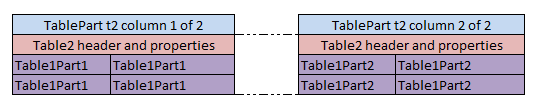

Horizontal Merging of Table Parts

Testing Tool: Precision

A new Precision property for Double result validation enables approximate comparison of expected versus returned values, useful for non-terminating rational numbers such as π.

Testing Tool: Results Paging and Failure Filtering

Users can now display failed test cases only and limit the quantity shown per unit test. Results display across multiple pages to improve performance with large test datasets.

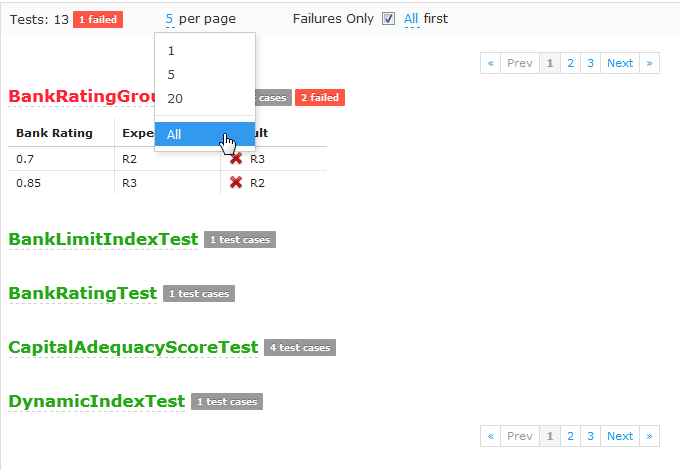

Test Results Paging

Improvements

Core:

  • Array element attribute specification using <name>[i].<attribute> syntax.
  • Table relationship specification using > <referenced table>.<attribute> <column> syntax.
  • Runtime context classes updated to MIT License.

WebStudio:

  • Secured repository creation/connection option.
  • Easy Editing workflow with direct module export from the Rules Editor.
  • Unlock function for projects locked by other users.
  • Internet Explorer 10 support.
  • User profile management page.
  • Project history file configuration.
  • Project/module name validation for forbidden symbols.
  • WebStudio System properties applicable without server restart.
  • Flyway-based automated database migration.
  • Oracle and MS SQL database support.
  • Multiple UI enhancements including failed test case count display and property grouping.

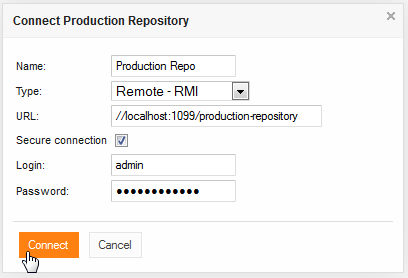

Secured Repository Option

Web Services:

  • Annotation support in Dynamic Interface (variations, dispatcher).

Other:

  • Custom Spreadsheet Type enabled by default.
  • Upgraded Apache Jackrabbit to 2.4.4.
  • OpenL Tablets Demo project introduced.
  • openl-simple-project included in Maven Archetype.

Bug Fixes

  • Fixed: Array Index operators functionality.
  • Fixed: Table editor formatting preservation with the Bold option.
  • Fixed: Project sorting in the Rules Editor and Repository filters.
  • Fixed: “Include” feature bugs.
  • Fixed: Custom SpreadsheetResult binding errors.
  • Fixed: Spreadsheet return type from TBasic table results.
  • Fixed: Multiple Explanation-related issues.
  • Fixed: Date editor support for non-standard formats.
  • Fixed: Repository security permissions.

Deprecations

Deprecated Item Notes
Eclipse plugins Deprecated starting from 5.11 — will be removed in a future release
